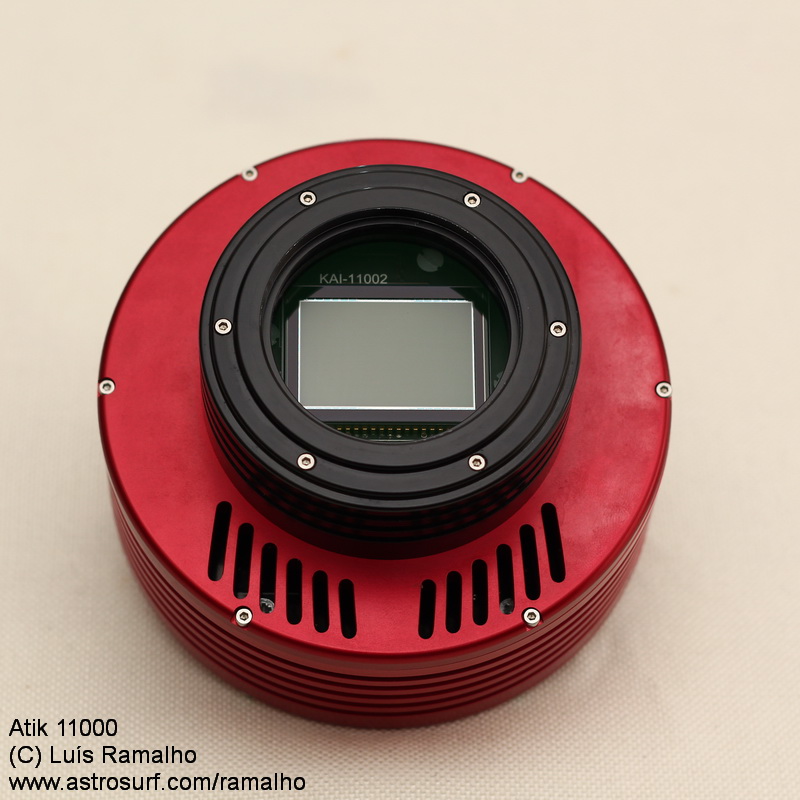

Câmara ATIK 11000
 |
| |
 |
| |
 |
| |
|
|
| |
| |
Technical Specification
- Sensor Type: CCD - Kodak KAI 11002
- Sensor size: 37.25mm x 25.70mm
- Horizontal Resolution: 4008 pixels
- Vertical Resolution: 2672 pixels
- Pixel Size: 9 µM x 9 µM
- ADC: 16 bit
- Readout Noise: 13 e- RMS typical value
- Dark current: 0.03 electrons per sec at -20 degrees
- Well depth: 60,000 electrons
- Anti blooming: >1000x
- Quantum Efficiency: 50%
- Linearity: R squared test equal to 1
- Interface: USB 2.0 High Speed
- Power: 12v DC
- Maximum Exposure Length: Unlimited
- Minimum Exposure Length: 1/1000 s
- Guide Port: ST-4 compatible
- Cooling: Two stage Peltier with ΔT=-38°C, with optional water assist Full temperature regulation.
- Weight: 990g
|
|
| |
 |
| |
 |
| |
| |
| ATIK 11000 Manual >>>>> |

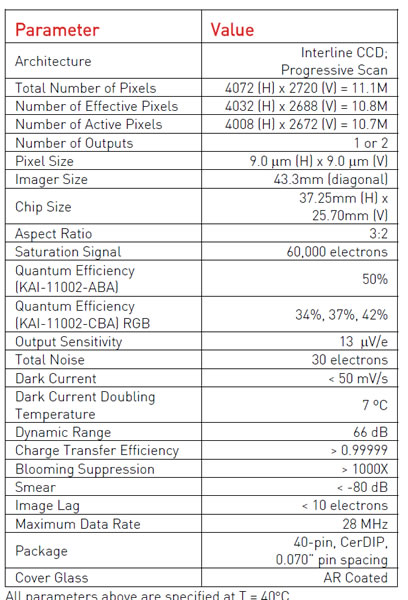

Kodak KAI 11002 Device Performance Specification >>>>> |
| Mechanical drawing >>>>> |
| |
| |
| |
